Spring Boot 错误页面解析原理(超级无敌详细)
5.SpringBoot 错误页面
1.默认效果

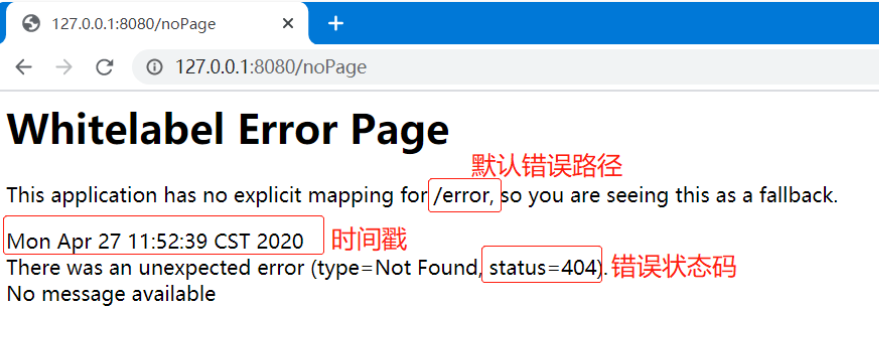

当我们在运行SpringBoot的时候,访问一个不存在的页面,SpringBoot默认为我们返回一个空白页面,如下所示
这个空白页面主要包括 默认错误路径、时间戳、错误提示消息 和错误状态码

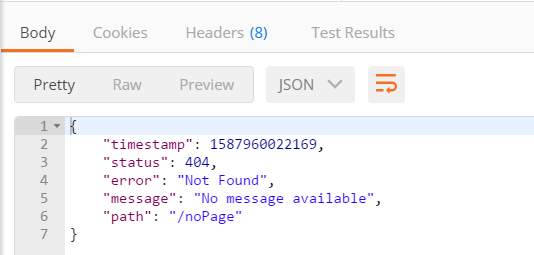

但如果我们使用其他的客户端(非浏览器),例如 Postman工具 发送 http://127.0.0.1:8080/noPage 请求时,默认响应客户端的是JSON数据,如下图所示
2.原理
出现上面的两种默认效果的原因是 SpringBoot为我们自动配置了 错误处理自动配置的 控制器ErrorMvcAutoConfiguration
首先,我们ErrorMvcAutoConfiguration
为我们配置了这几个组件
- DefaultErrorAttributes
- BasicErrorController
- ErrorPageCustomizer
- DefaultErrorViewResolver
@Bean@ConditionalOnMissingBean(value = ErrorAttributes.class, search = SearchStrategy.CURRENT)public DefaultErrorAttributes errorAttributes() {return new DefaultErrorAttributes(this.serverProperties.getError().isIncludeException());}@Bean@ConditionalOnMissingBean(value = ErrorController.class, search = SearchStrategy.CURRENT)public BasicErrorController basicErrorController(ErrorAttributes errorAttributes,ObjectProvider<ErrorViewResolver> errorViewResolvers) {return new BasicErrorController(errorAttributes, this.serverProperties.getError(),errorViewResolvers.orderedStream().collect(Collectors.toList()));}@Beanpublic ErrorPageCustomizer errorPageCustomizer(DispatcherServletPath dispatcherServletPath) {return new ErrorPageCustomizer(this.serverProperties, dispatcherServletPath);}@Configuration(proxyBeanMethods = false)static class DefaultErrorViewResolverConfiguration {private final ApplicationContext applicationContext;private final ResourceProperties resourceProperties;DefaultErrorViewResolverConfiguration(ApplicationContext applicationContext,ResourceProperties resourceProperties) {this.applicationContext = applicationContext;this.resourceProperties = resourceProperties;}@Bean@ConditionalOnBean(DispatcherServlet.class)@ConditionalOnMissingBean(ErrorViewResolver.class)DefaultErrorViewResolver conventionErrorViewResolver() {return new DefaultErrorViewResolver(this.applicationContext, this.resourceProperties);}}
ErrorPageCustomizer
@Beanpublic ErrorPageCustomizer errorPageCustomizer(DispatcherServletPath dispatcherServletPath) {return new ErrorPageCustomizer(this.serverProperties, dispatcherServletPath);}
首先,它会实例化出一个 ErrorPageCustomizer
对象,在ErrorPageCustomizer
对象中有一个重要的方法registerErrorPages
@Overridepublic void registerErrorPages(ErrorPageRegistry errorPageRegistry) {ErrorPage errorPage = new ErrorPage(this.dispatcherServletPath.getRelativePath(this.properties.getError().getPath()));errorPageRegistry.addErrorPages(errorPage);}
然后就会调用该方法,注册一个错误页面, 通过 getPath()
获取到路径,getPath
存在默认的值为"/error",如果在配置文件中配值了``server.error.path=/errors那就会从配置文件中取出
error.path`的值
@Value("${error.path:/error}")private String path = "/error";
- 总结
ErrorPageCustomizer
组件的作用就是 当 用户请求一旦发生错误时,就会获得 path (错误页面的路径),然后将我们转发到 path 路径下。 并将该路径信息发给BasicErrorController
进行处理
BasicErrorController
从名字上,我们可以知道它是一个 基本的错误控制器。 核心代码如下:
@Controller
@RequestMapping("${server.error.path:${error.path:/error}}")
public class BasicErrorController extends AbstractErrorController {@RequestMapping(produces = MediaType.TEXT_HTML_VALUE)public ModelAndView errorHtml(HttpServletRequest request, HttpServletResponse response) {HttpStatus status = getStatus(request);Map<String, Object> model = Collections.unmodifiableMap(getErrorAttributes(request, isIncludeStackTrace(request, MediaType.TEXT_HTML)));response.setStatus(status.value());ModelAndView modelAndView = resolveErrorView(request, response, status, model);return (modelAndView != null) ? modelAndView : new ModelAndView("error", model);}@RequestMappingpublic ResponseEntity<Map<String, Object>> error(HttpServletRequest request) {HttpStatus status = getStatus(request);if (status == HttpStatus.NO_CONTENT) {return new ResponseEntity<>(status);}Map<String, Object> body = getErrorAttributes(request, isIncludeStackTrace(request, MediaType.ALL));return new ResponseEntity<>(body, status);}
它是用来处理 配置文件下的 server.error.path
的请求,如果 server.error.path
未配置时,就会处理 配置文件下的 error.path
的请求,如果也没配置,就会处理/error
在这个控制器组件下面 存在着两个 @RequestMapping ,都是处理同一个请求路径的 方法。只是这两个方法的返回值不一样
@RequestMapping(produces = MediaType.TEXT_HTML_VALUE) // 产生html类型的数据
public ModelAndView errorHtml(HttpServletRequest request, HttpServletResponse response)@RequestMappingpublic ResponseEntity<Map<String, Object>> error(HttpServletRequest request) {
TEXT_HTML_VALUE = "text/html
但是竟然这两种方式都是用于处理一个请求的,为什么浏览器获取的数据和postMan获取的会不一样呢?
原因是浏览器发送的请求的请求头包含这串信息
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
也就是说 浏览器优先接收 text/html类型的数据。

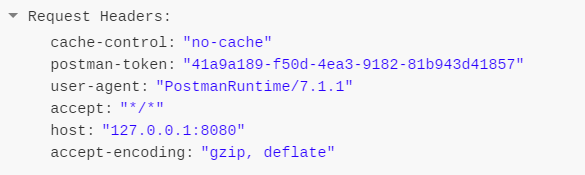

而postMan发送请求时 的请求头如下,它没有指明 希望接收的数据类型,所以服务端给它返回一个JSON类型的数据
那重点来了,返回页面时,又是如何实现的呢?
@RequestMapping(produces = MediaType.TEXT_HTML_VALUE) // TEXT_HTML_VALUE = "text/htmlpublic ModelAndView errorHtml(HttpServletRequest request, HttpServletResponse response) {HttpStatus status = getStatus(request);Map<String, Object> model = Collections.unmodifiableMap(getErrorAttributes(request, isIncludeStackTrace(request, MediaType.TEXT_HTML)));response.setStatus(status.value());ModelAndView modelAndView = resolveErrorView(request, response, status, model);return (modelAndView != null) ? modelAndView : new ModelAndView("error", model);}
当用户发送请求,发送错误时
- 首先,它会通过请求获取响应状态码和一些model数据,,然后返回一个
modelAndViews
, 通过第7行,我们可以知道modelAndViews
是通过调用resolveErrorView()
方法获得的。modelAndViews
包含了需要返回的地址,页面等信息 - 响应页面是调用了
resolveErrorView()
,如下
protected ModelAndView resolveErrorView(HttpServletRequest request, HttpServletResponse response, HttpStatus status,Map<String, Object> model) {for (ErrorViewResolver resolver : this.errorViewResolvers) {ModelAndView modelAndView = resolver.resolveErrorView(request, status, model);if (modelAndView != null) {return modelAndView;}}return null;
}
第2行:遍历所有的 ErrorViewResolver
,调用resolver. resolveErrorView(request, status, model)
如果存在着 一个 modelAndView
就返回.
在之前,Spring Boot 为我们自动注册了一个 DefaultErrorViewResolver
到容器中,也就是说resolveErrorView()
方法将会由 DefaultErrorViewResolver
进行调用。
DefaultErrorViewResolver
public class DefaultErrorViewResolver implements ErrorViewResolver, Ordered {private static final Map<Series, String> SERIES_VIEWS;static {Map<Series, String> views = new EnumMap<>(Series.class);views.put(Series.CLIENT_ERROR, "4xx");views.put(Series.SERVER_ERROR, "5xx");SERIES_VIEWS = Collections.unmodifiableMap(views);}@Overridepublic ModelAndView resolveErrorView(HttpServletRequest request, HttpStatus status, Map<String, Object> model) {ModelAndView modelAndView = resolve(String.valueOf(status.value()), model);if (modelAndView == null && SERIES_VIEWS.containsKey(status.series())) {modelAndView = resolve(SERIES_VIEWS.get(status.series()), model);}return modelAndView;}private ModelAndView resolve(String viewName, Map<String, Object> model) {String errorViewName = "error/" + viewName;TemplateAvailabilityProvider provider = this.templateAvailabilityProviders.getProvider(errorViewName,this.applicationContext);if (provider != null) {return new ModelAndView(errorViewName, model);}return resolveResource(errorViewName, model);}
首先,我们可以发现 第5-10行 ,为map中添加了一下客户端错误,用"4xx"表示;服务端错误,用"5xx"表示。
然后就会调用 第13-19行的 resolveErrorView()
方法,解析错误视图。
因为发生了错误,所以modelAndView
自然就是等于 null 了,那么就会调用第16行的resolve()
方法进行解析,并返回一个modelAndView对象。
resolve(SERIES_VIEWS.get(status.series()), model)
private ModelAndView resolve(String viewName, Map<String, Object> model)

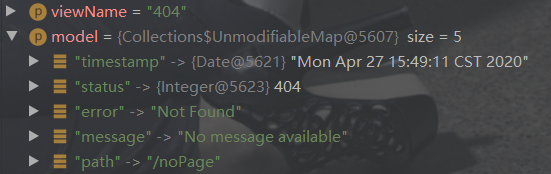

调用resolve()方法时,传入了两个参数,分别为视图名称和model数据
第23行:this.templateAvailabilityProviders.getProvider(errorViewName,this.applicationContext)
如果模板引擎 根据这个错误视图名称能找到对应的模板时,就用模板引擎进行解析
如果解析的结果不为空时,即解析成功过,就将模板引擎解析的 modelAndView
的结果进行返回,否者就调用resolveResource(errorViewName, model)
返回默认的视图。
private ModelAndView resolveResource(String viewName, Map<String, Object> model) {for (String location : this.resourceProperties.getStaticLocations()) {try {Resource resource = this.applicationContext.getResource(location);resource = resource.createRelative(viewName + ".html");if (resource.exists()) {return new ModelAndView(new HtmlResourceView(resource), model);}}catch (Exception ex) {}}return null;}
调用resolveResource
方法的时候,从第2行,我们可以发现它会在静态资源下找一个资源名为 错误状态码.html
的静态资源(如果我们的错误状态码为404,那么它就会 静态资源文件夹下找 404.html
)
3.错误页面总结:
1)、有模板引擎的情况下;error/状态码; 【将错误页面命名为 错误状态码.html 放在模板引擎文件夹里面的 error文件夹下】,发生此状态码的错误就会来到 对应的页面;
2)我们可以使用4xx和5xx作为错误页面的文件名来匹配这种类型的所有错误,精确优先(优先寻找精确的状态码.html);
有模板引擎的情况下,首先会在
templates/error/
文件下获取状态码.html文件
如果
状态码.html文件
不存在的情况下,templates/error/
文件夹下获取 状态码对应的 **“4xx.html”或"5xx.html"**文件。如果都不存在的话会在一下静态资源文件夹 获取资源, 精确优先(优先寻找精确的状态码.html),否则查早对应的 **“4xx.html”或"5xx.html"**文件
private static final String[] CLASSPATH_RESOURCE_LOCATIONS = {"classpath:/META-INF/resources/", "classpath:/resources/","classpath:/static/", "classpath:/public/"};

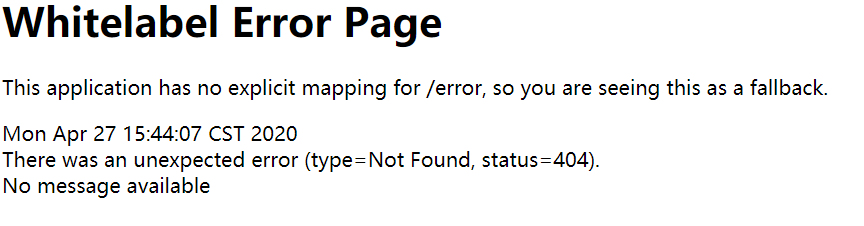

如果以上都不能获取,则返回默认的 Whitelabel Error Page
页面能获取的信息;
timestamp:时间戳
status:状态码
error:错误提示
exception:异常对象
message:异常消息
errors:JSR303数据校验的错误都在这里
