UEditor应用 —— 图片上传
2019独角兽企业重金招聘Python工程师标准>>>
本文介绍UEditor图片上传功能的实现。
使用的例子项目架构如下:
freemaker + spring boot + spring mvc + maven
例子项目已上传码云,码云地址如下:
http://git.oschina.net/imlichao/ueditor-example-image_upload
前端部署

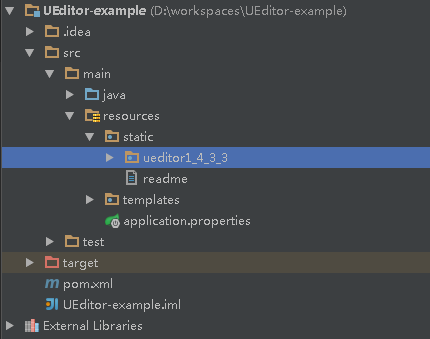

下载UEditor项目包,并部署到项目中
pring boot项目放在静态资源目录下
在页面加载UEditor
<!DOCTYPE HTML>
<html lang="en" class="no-js"><head><meta charset="UTF-8"><title>ueditor demo</title><!-- spring boot默认静态资源跟目录在static下 --><script type="text/javascript" charset="utf-8" src="/ueditor1_4_3_3/ueditor.config.js"></script><script type="text/javascript" charset="utf-8" src="/ueditor1_4_3_3/ueditor.all.min.js"></script><script type="text/javascript" charset="utf-8" src="/ueditor1_4_3_3/lang/zh-cn/zh-cn.js"></script>
</head><body text-align:center><table style="margin:0 auto;"><tr><td><h1>ueditor demo</h1></td></tr><tr><td><script id="editor" type="text/plain" style="width:1024px;height:500px;"></script></td></tr></table><script type="text/javascript">var ue = UE.getEditor('editor');</script>
</body></html>

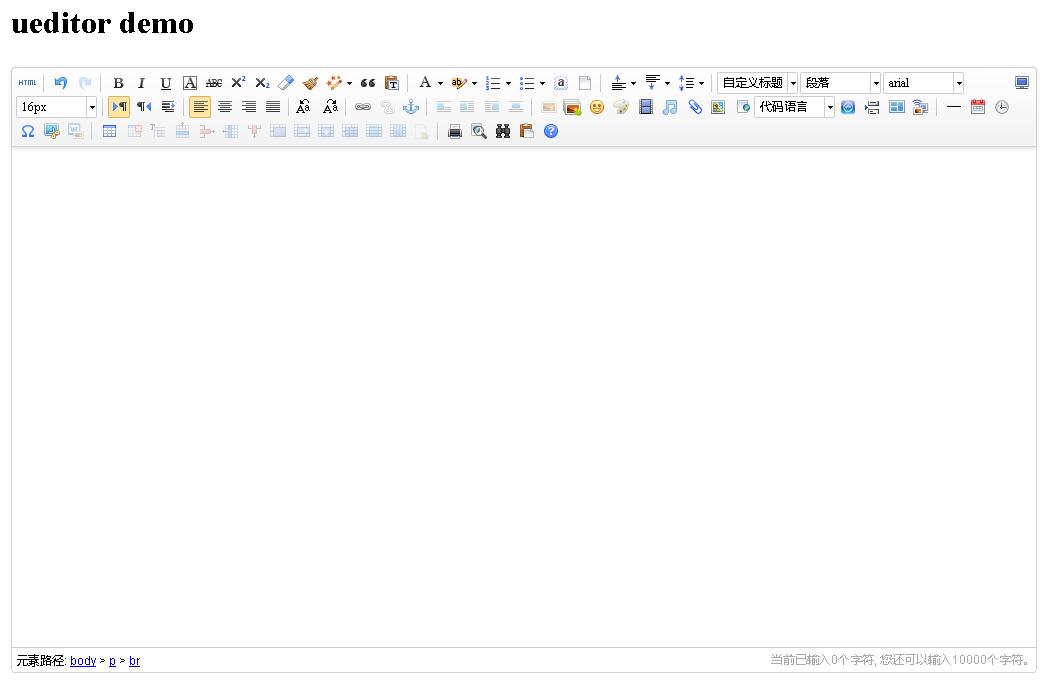

执行效果
到这里UEditor一些基础的编辑功能已经能够使用了,但是像图片上传这一类功能还需要进行后台配置。
后端部署

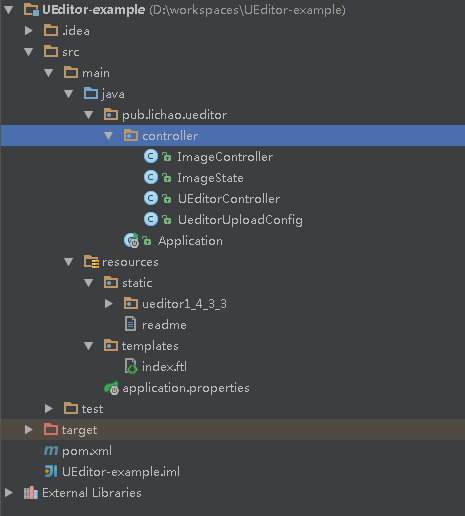

目录结构
配置后台统一请求路径
在ueditor.config.js找到serverUrl参数修改为自己的后台请求接收方法
// 服务器统一请求接口路径 , serverUrl: "/ueditor/interface"
编写请求接收方法
/*** ueditor 服务器统一请求接口(GET)* @param action config 加载时获取配置文件* @return*/@RequestMapping(value = "/ueditor/interface", method = RequestMethod.GET)@ResponseBodypublic String ueGetInterface(String action) {System.out.println("Successful GET interface call");return null;}
测试请求路径是否设置成功。
ue在加载时会调用一次serverUrl,我们可以在接收方法内打断点或打印日志进行测试。
在这里要对统一请求路径做一下说明:
ueditor会将所有的后台请求发送至统一请求路径。
不同的功能会使用不同的方式提交,获取配置使用GET提交,上传图片或文件使用POST提交,所以接口要分开两个方法写。
既然所有的后台请求都发送到一个接口,那么怎么区分请求的是什么功能呢?答案就是action参数,action传入“config”时代表获取配置,action传入“uploadimage”时代表上传图片,还有其他的值在这里就不做一一列举了,可以自己去看api文档。
设置上传配置
在服务器统一请求接口中获取配置并转换成json形式返回
/*** ueditor 服务器统一请求接口(GET)* @param action config 加载时获取配置文件* @return*/@RequestMapping(value = "/ueditor/interface", method = RequestMethod.GET)@ResponseBodypublic String ueGetInterface(String action) {System.out.println("Successful GET interface call");//创建文件上传配置文件类并转换为json方式返回if(action != null && action.equals("config")){try {ObjectMapper mapper = new ObjectMapper();String config = mapper.writeValueAsString(new UeditorUploadConfig());return config;} catch (Exception e) {e.printStackTrace();}}return null;}
package pub.lichao.ueditor.controller;/*** Ueditor 文件上传配置*/
public class UeditorUploadConfig {/*** 执行上传图片的action名称*/private String imageActionName="uploadimage";/*** 提交的图片表单名称*/private String imageFieldName="upfile";/*** 上传大小限制,单位B*/private Integer imageMaxSize=2048000;/*** 上传图片格式显示*/private String[] imageAllowFiles=new String[]{".png",".jpg",".jpeg",".gif"};/*** 是否压缩图片*/private Boolean imageCompressEnable=true;/*** 图片压缩最长边限制*/private Integer imageCompressBorder=1600;/*** 插入的图片浮动方式*/private String imageInsertAlign="none";/*** 图片访问路径前缀*/private String imageUrlPrefix="";... get set 方法 ...
}
编写图片上传逻辑
本项目将图片保存到了项目本地路径中,在实际应用中往往会将图片保存在专门的图片服务器中。例如阿里云的OSS
/*** ueditor 服务器统一请求接口(POST)* @param action uploadimage 图片上传* @return*/@RequestMapping(value = "/ueditor/interface", method = RequestMethod.POST)@ResponseBodypublic String uePostInterface(String action,MultipartFile upfile, HttpServletRequest request) {System.out.println("Successful POST interface call");//转换json格式工具ObjectMapper mapper = new ObjectMapper();//返回值对象ImageState imageState = new ImageState();try {//执行图片上传并返回json格式结果if(action != null && action.equals("uploadimage")){System.out.println("uploadimage");//保存文件(将图片上传到项目中,生产应用中会使用OSS等文件服务器进行存放)String dirPath = request.getSession().getServletContext().getRealPath("/images");new File(dirPath).mkdirs(); //创建目录System.out.println("图片保存在{"+dirPath+"}目录中");//为防止重名使用时间戳重新命名String filename = "image" + Long.toString(System.currentTimeMillis()) + "." + FilenameUtils.getExtension(upfile.getOriginalFilename()); ;String filePath = dirPath + "/" + filename;upfile.transferTo(new File(filePath));//转存文件//组装返回值imageState.setState("SUCCESS");imageState.setOriginal(upfile.getOriginalFilename());imageState.setSize(Long.toString(upfile.getSize()));imageState.setTitle(filename);imageState.setType(upfile.getContentType());String url = request.getScheme() +"://" + request.getServerName() + ":" +request.getServerPort() + request.getContextPath() + "/images/" + filename;imageState.setUrl(url);return mapper.writeValueAsString(imageState);}else{imageState.setState("无匹配的action类型");return mapper.writeValueAsString(imageState);}} catch (Exception e) {e.printStackTrace();}return null;}
package pub.lichao.ueditor.controller;/*** Ueditor 图片返回值*/
public class ImageState {/*** 上传状态 上传成功时必须返回"SUCCESS",失败时可以返回错误提示*/private String state;/*** 上传的原文件名*/private String original;/*** 文件大小*/private String size;/*** 上传后的新文件名*/private String title;/*** 文件类型*/private String type;/*** 图片访问地址*/private String url;... get set 方法 ...
}
访问图片
图片上传成功后要给前台返回一个图片的访问地址,图片才能够正常在插件中展示。这里提供有一个访问项目中图片的类用于本例子使用。如果是使用文件服务器就不用此部分代码了,直接使用服务器提供的url返回给前台展示即可。
package pub.lichao.ueditor.controller;import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.io.ResourceLoader;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;import javax.servlet.http.HttpServletRequest;
import java.nio.file.Paths;@Controller
public class ImageController {private final ResourceLoader resourceLoader;@Autowiredpublic ImageController(ResourceLoader resourceLoader) {this.resourceLoader = resourceLoader;}/*** 访问图片* @param imagename* @param request* @return*/@RequestMapping(value = "/images/{imagename:.+}", method = RequestMethod.GET)@ResponseBodypublic ResponseEntity<?> images(@PathVariable String imagename,HttpServletRequest request) {try {String dirPath = request.getSession().getServletContext().getRealPath("/images");return ResponseEntity.ok(resourceLoader.getResource("file:" + Paths.get(dirPath, imagename).toString()));} catch (Exception e) {return ResponseEntity.notFound().build();}}
}
其实图片上传是一个比较容易实现的功能,此文希望对大家有帮助。
转载于:https://my.oschina.net/u/3452433/blog/916535
