Spring 的事务是依据AOP来实现的，通过AOP从切面来抓捕异常判断是否回滚以及如何回滚，若是正常的返回则是清理事务信息，实施事务提交动作，具体的代码入口在 TransactionInterceptor 里面 的 invoke 方法，

   @Overridepublic Object invoke(final MethodInvocation invocation) throws Throwable {// Work out the target class: may be {@code null}.// The TransactionAttributeSource should be passed the target class// as well as the method, which may be from an interface.Class<?> targetClass = (invocation.getThis() != null ? AopUtils.getTargetClass(invocation.getThis()) : null);// Adapt to TransactionAspectSupport's invokeWithinTransaction...return invokeWithinTransaction(invocation.getMethod(), targetClass, new InvocationCallback() {@Overridepublic Object proceedWithInvocation() throws Throwable {return invocation.proceed();}});}

具体的实现细节在  invokeWithinTransaction 里面

/*** General delegate for around-advice-based subclasses, delegating to several other template* methods on this class. Able to handle {@link CallbackPreferringPlatformTransactionManager}* as well as regular {@link PlatformTransactionManager} implementations.* @param method the Method being invoked* @param targetClass the target class that we're invoking the method on* @param invocation the callback to use for proceeding with the target invocation* @return the return value of the method, if any* @throws Throwable propagated from the target invocation*/protected Object invokeWithinTransaction(Method method, Class<?> targetClass, final InvocationCallback invocation)throws Throwable {// If the transaction attribute is null, the method is non-transactional.final TransactionAttribute txAttr = getTransactionAttributeSource().getTransactionAttribute(method, targetClass);final PlatformTransactionManager tm = determineTransactionManager(txAttr);final String joinpointIdentification = methodIdentification(method, targetClass);if (txAttr == null || !(tm instanceof CallbackPreferringPlatformTransactionManager)) {// Standard transaction demarcation with getTransaction and commit/rollback calls.TransactionInfo txInfo = createTransactionIfNecessary(tm, txAttr, joinpointIdentification);Object retVal = null;try {// This is an around advice: Invoke the next interceptor in the chain.// This will normally result in a target object being invoked.retVal = invocation.proceedWithInvocation();}catch (Throwable ex) {// target invocation exceptioncompleteTransactionAfterThrowing(txInfo, ex);throw ex;}finally {cleanupTransactionInfo(txInfo);}commitTransactionAfterReturning(txInfo);return retVal;}else {// It's a CallbackPreferringPlatformTransactionManager: pass a TransactionCallback in.try {Object result = ((CallbackPreferringPlatformTransactionManager) tm).execute(txAttr,new TransactionCallback<Object>() {@Overridepublic Object doInTransaction(TransactionStatus status) {TransactionInfo txInfo = prepareTransactionInfo(tm, txAttr, joinpointIdentification, status);try {return invocation.proceedWithInvocation();}catch (Throwable ex) {if (txAttr.rollbackOn(ex)) {// A RuntimeException: will lead to a rollback.if (ex instanceof RuntimeException) {throw (RuntimeException) ex;}else {throw new ThrowableHolderException(ex);}}else {// A normal return value: will lead to a commit.return new ThrowableHolder(ex);}}finally {cleanupTransactionInfo(txInfo);}}});// Check result: It might indicate a Throwable to rethrow.if (result instanceof ThrowableHolder) {throw ((ThrowableHolder) result).getThrowable();}else {return result;}}catch (ThrowableHolderException ex) {throw ex.getCause();}}}

基本的实现流程如上面阐述的三个阶段， 创建事务信息 ， 方式异常就回滚， 清理事务信息以及提交事务。

事务状态信息的创建

事务状态信息的创建比较复杂，分为两点来讲, 一点是 ：当前已存在事务如何处理，另外就是 不存在事务的处理方式。

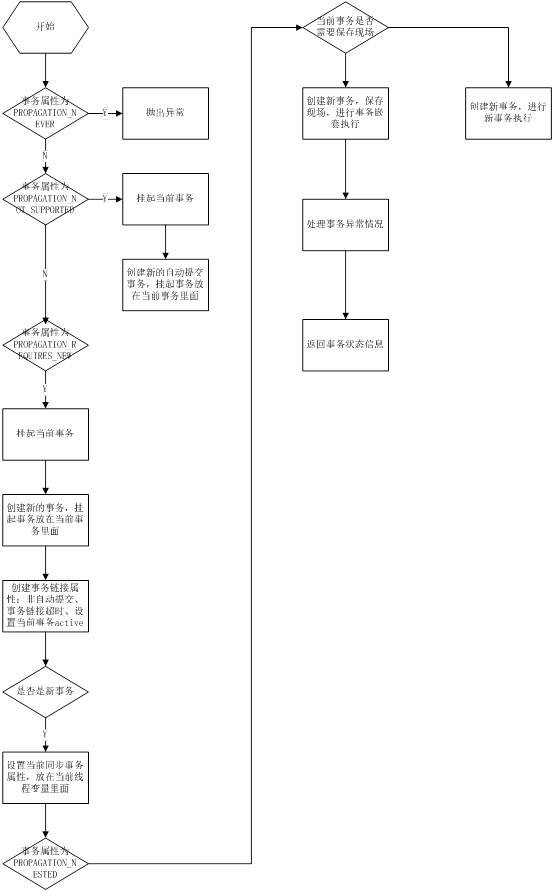

已存在事务：

已存在的事务创建里面当发现当前事务正在运行，就保存当前事务的节点信息，以供后续异常回滚时候按照当前节点进行回滚的需要；

if (useSavepointForNestedTransaction()) {// Create savepoint within existing Spring-managed transaction,// through the SavepointManager API implemented by TransactionStatus.// Usually uses JDBC 3.0 savepoints. Never activates Spring synchronization.DefaultTransactionStatus status =prepareTransactionStatus(definition, transaction, false, false, debugEnabled, null);status.createAndHoldSavepoint();return status;}

另外还有一点在这个流程里面比较重要的是：事务的挂起，当需要创建一个新的事务的时候就需要将当前的事务挂起，挂起的动作其实就是从当前维护秩序 ThreadLocal 里面去除执行事务并在创建当前事务的时候把去除的事务信息挂载进去，当执行完当前事务再提取出来执行

public void suspend() {  if (this.holderActive) {  TransactionSynchronizationManager.unbindResource(this.resourceKey);  }
}............if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW) {  if (debugEnabled) {  logger.debug("Suspending current transaction, creating new transaction with name [" +  definition.getName() + "]");  }  SuspendedResourcesHolder suspendedResources = suspend(transaction);  try {  boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);  DefaultTransactionStatus status = newTransactionStatus(  definition, transaction, true, newSynchronization, debugEnabled, suspendedResources);  doBegin(transaction, definition);  prepareSynchronization(status, definition);  return status;  }  catch (RuntimeException beginEx) {  resumeAfterBeginException(transaction, suspendedResources, beginEx);  throw beginEx;  }  catch (Error beginErr) {  resumeAfterBeginException(transaction, suspendedResources, beginErr);  throw beginErr;  }  }

调用 suspend 方法挂起当前事务，并退出当前事务资源，保存在新的事务里面。当后续提交或者回滚的时候，代码会判断当前是否有挂起事务，有挂起事务就恢复到当前线程

private void cleanupAfterCompletion(DefaultTransactionStatus status) {status.setCompleted();if (status.isNewSynchronization()) {TransactionSynchronizationManager.clear();}if (status.isNewTransaction()) {doCleanupAfterCompletion(status.getTransaction());}if (status.getSuspendedResources() != null) {if (status.isDebug()) {logger.debug("Resuming suspended transaction after completion of inner transaction");}resume(status.getTransaction(), (SuspendedResourcesHolder) status.getSuspendedResources());}

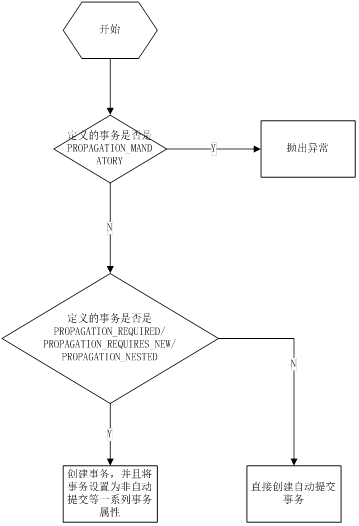

不存在已经有的事务

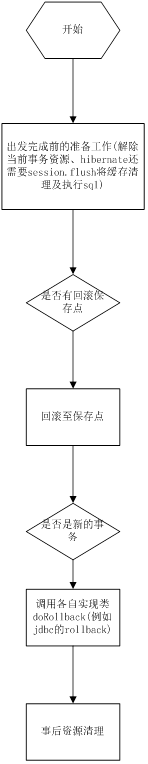

事务回滚

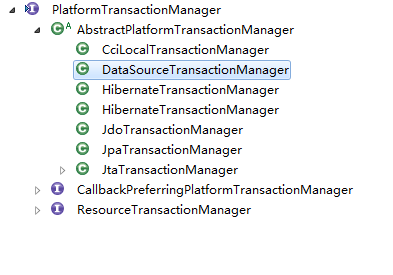

事务回滚由具体的db客户端实现类实现，如下他们的继承关系如下：

具体的回滚代码以   DataSourceTransactionManager  为例：

 protected void doRollback(DefaultTransactionStatus status) {DataSourceTransactionManager.DataSourceTransactionObject txObject = (DataSourceTransactionManager.DataSourceTransactionObject)status.getTransaction();Connection con = txObject.getConnectionHolder().getConnection();if(status.isDebug()) {this.logger.debug("Rolling back JDBC transaction on Connection [" + con + "]");}try {con.rollback();} catch (SQLException var5) {throw new TransactionSystemException("Could not roll back JDBC transaction", var5);}}

就是获取当前事务的链接，执行回滚，这个链接在创建事务信息的时候已经说明。具体到con.rollback() 可以以 MySQL的连接客户端代码为例，即通过链接 io 发送 rollback的命令到服务器来实现回滚，如下

 private void rollbackNoChecks() throws SQLException {if ((getUseLocalTransactionState()) && (versionMeetsMinimum(5, 0, 0)) && (!this.io.inTransactionOnServer())) {return;}execSQL(null, "rollback", -1, null, 1003, 1007, false, this.database, null, false);}

一个 execSQL 就通过链接io向服务器提交sql语句的过程。

事务清理

事务清理，比较简单，如下代码：

protected void cleanupTransactionInfo(TransactionInfo txInfo) {if (txInfo != null) {txInfo.restoreThreadLocalStatus();}}private void restoreThreadLocalStatus() {// Use stack to restore old transaction TransactionInfo.// Will be null if none was set.transactionInfoHolder.set(this.oldTransactionInfo);}

只是将事务信息里面 TransactionInfoHolder 重新设置为 oldTransactionInfo 而已。

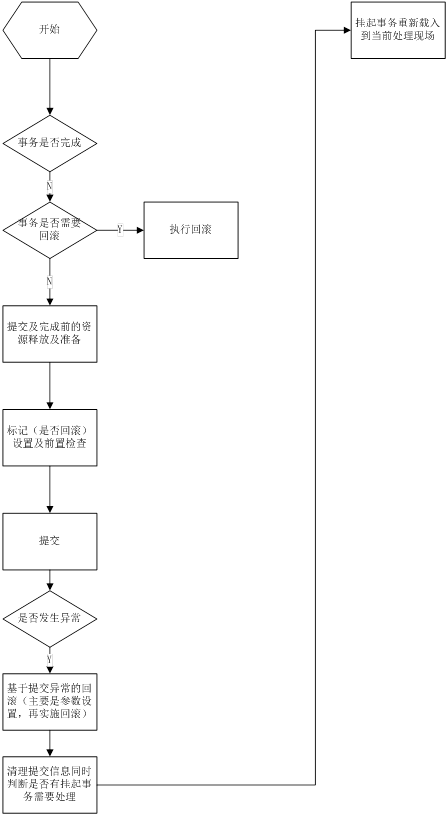

事务提交

事务提交完成最后有一段方法是cleanupAfterCompletion，这个代码如下：

private void cleanupAfterCompletion(DefaultTransactionStatus status) {status.setCompleted();if (status.isNewSynchronization()) {TransactionSynchronizationManager.clear();}if (status.isNewTransaction()) {doCleanupAfterCompletion(status.getTransaction());}if (status.getSuspendedResources() != null) {if (status.isDebug()) {logger.debug("Resuming suspended transaction after completion of inner transaction");}resume(status.getTransaction(), (SuspendedResourcesHolder) status.getSuspendedResources());}}

在之前的事务状态信息创建的时候也提到，resume是对挂起事务的还原，具体的resume如下：

protected final void resume(Object transaction, SuspendedResourcesHolder resourcesHolder)throws TransactionException {if (resourcesHolder != null) {Object suspendedResources = resourcesHolder.suspendedResources;if (suspendedResources != null) {doResume(transaction
, suspendedResources);}List<TransactionSynchronization> suspendedSynchronizations = resourcesHolder.suspendedSynchronizations;if (suspendedSynchronizations != null) {TransactionSynchronizationManager.setActualTransactionActive(resourcesHolder.wasActive);TransactionSynchronizationManager.setCurrentTransactionIsolationLevel(resourcesHolder.isolationLevel);TransactionSynchronizationManager.setCurrentTransactionReadOnly(resourcesHolder.readOnly);TransactionSynchronizationManager.setCurrentTransactionName(resourcesHolder.name);doResumeSynchronization(suspendedSynchronizations);}}}

主要是将挂起资源信息取出还原到当前同步线程中，并且把整个事务资源信息注册进去，如下：

public static void registerSynchronization(TransactionSynchronization synchronization)throws IllegalStateException {Assert.notNull(synchronization, "TransactionSynchronization must not be null");if (!isSynchronizationActive()) {throw new IllegalStateException("Transaction synchronization is not active");}synchronizations.get().add(synchronization);}
