Springboot+netty+websocket 实现单聊群聊及用户鉴权
2024-05-12 17:56:50
提示：文章写完后，目录可以自动生成，如何生成可参考右边的帮助文档
文章目录
- 前言
- 一、配置
- 二、Netty服务
- 1. WsServer构建
- 2. ChannelInitializer构建
- 3. 自定义消息处理器
- 4. 全局用户Session管理
- 5. 客户端与服务端消息实体
- 6. 消息构建工具类
- 7. 鉴权处理器
- 三， 整合spring
前言
技术栈： SpringBoot+netty+websocket+mybatis-plus
一、配置
Maven
<parent><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-parent</artifactId><version>2.6.5</version></parent><dependencies><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><dependency><groupId>cn.hutool</groupId><artifactId>hutool-all</artifactId><version>5.7.22</version></dependency><dependency><groupId>com.sun.mail</groupId><artifactId>javax.mail</artifactId><version>1.6.2</version></dependency><dependency><groupId>com.graphql-java-kickstart</groupId><artifactId>graphql-spring-boot-starter</artifactId><version>12.0.0</version></dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-redis</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-elasticsearch</artifactId></dependency><dependency><groupId>io.netty</groupId><artifactId>netty-all</artifactId><version>4.1.75.Final</version></dependency><dependency><groupId>com.alibaba</groupId><artifactId>fastjson</artifactId><version>1.2.80</version></dependency><dependency><groupId>com.baomidou</groupId><artifactId>mybatis-plus-boot-starter</artifactId><version>3.5.1</version></dependency><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId></dependency><dependency><groupId>cn.hutool</groupId><artifactId>hutool-all</artifactId><version>5.7.22</version></dependency>
spring配置
server:port: 10086
netty:host: 127.0.0.1port: 10010
spring:datasource:driver-class-name: com.mysql.cj.jdbc.Driverurl: jdbc:mysql://127.0.0.1:3306/test_one?useUnicode=true&useSSL=falseusername: xzqpassword: root
mybatis-plus:mapper-locations: classpath*:/mapper/**/*.xmltype-aliases-package: com.xzq.netty.websocket.entityconfiguration:log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
二、Netty服务
1. WsServer构建
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelOption;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;@Component
@Slf4j
public class WsServer {@Value("${netty.host}")public String host;@Value("${netty.port}")public Integer port;@Autowiredprivate WsChannelInitializer channelInitializer;private NioEventLoopGroup bossGroup = new NioEventLoopGroup();private NioEventLoopGroup workerGroup = new NioEventLoopGroup();public void listener() {try {ServerBootstrap serverBootstrap = new ServerBootstrap().group(bossGroup, workerGroup).channel(NioServerSocketChannel.class)//指定服务端连接队列长度，也就是服务端处理线程全部繁忙，并且队列长度已达到1024个，后续请求将会拒绝.option(ChannelOption.SO_BACKLOG, 1024).childHandler(channelInitializer);log.info("Netty start successful " + host + ":" + port);ChannelFuture f = serverBootstrap.bind(host, port).sync();f.channel().closeFuture().sync();} catch (Exception e) {log.info("Ws服务启动失败：" + e);} finally {workerGroup.shutdownGracefully();bossGroup.shutdownGracefully();}}public void destroy() {log.info("JVM close，WsServer close");workerGroup.shutdownGracefully();bossGroup.shutdownGracefully();}}
2. ChannelInitializer构建
import io.netty.channel.ChannelInitializer;
import io.netty.channel.socket.SocketChannel;
import io.netty.handler.codec.http.HttpObjectAggregator;
import io.netty.handler.codec.http.HttpServerCodec;
import io.netty.handler.codec.http.websocketx.WebSocketServerProtocolHandler;
import io.netty.handler.stream.ChunkedWriteHandler;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;@Component
public class WsChannelInitializer extends ChannelInitializer<SocketChannel> {@Autowiredprivate AuthHandler authHandler;@Overrideprotected void initChannel(SocketChannel ch) throws Exception {//http 协议编解码器ch.pipeline().addLast("http-codec", new HttpServerCodec());//http请求聚合处理，多个HTTP请求或响应聚合为一个FullHtppRequest或FullHttpResponsech.pipeline().addLast("aggregator", new HttpObjectAggregator(65536));//鉴权处理器ch.pipeline().addLast("auth", authHandler);//大数据的分区传输ch.pipeline().addLast("http-chunked", new ChunkedWriteHandler());//websocket协议处理器ch.pipeline().addLast("websocket", new WebSocketServerProtocolHandler("/im"));//自定义消息处理器ch.pipeline().addLast("my-handler", new WsChannelHandler());}
}
3. 自定义消息处理器
import com.alibaba.fastjson.JSONException;
import com.alibaba.fastjson.JSONObject;
import com.xzq.netty.websocket.message.ClientMessage;
import com.xzq.netty.websocket.util.MsgUtil;
import io.netty.channel.Channel;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.handler.codec.http.websocketx.TextWebSocketFrame;
import lombok.extern.slf4j.Slf4j;@Slf4j
public class WsChannelHandler extends SimpleChannelInboundHandler<TextWebSocketFrame> {@Overridepublic void channelActive(ChannelHandlerContext ctx) throws Exception {Channel channel = ctx.channel();log.info("有客户端建立连接");log.info("客户端address: " + channel.remoteAddress().toString());log.info("客户端channel Id:" + channel.id().toString());}@Overrideprotected void channelRead0(ChannelHandlerContext ctx, TextWebSocketFrame msg) throws Exception {String body = msg.text();ClientMessage clientMessage = JSONObject.parseObject(body, ClientMessage.class);if (clientMessage.getType() == 1) {WsChannelGroup.userChannelGroup.get(clientMessage.getTo()).writeAndFlush(MsgUtil.buildSingleMsg(ctx.channel().id().toString(), clientMessage.getMsgInfo()));return;}WsChannelGroup.channelGroup.writeAndFlush(MsgUtil.buildGroupMsg(ctx.channel().id().toString(),clientMessage.getMsgInfo()));}@Overridepublic void channelInactive(ChannelHandlerContext ctx) throws Exception {Channel channel = ctx.channel();log.info("客户端断开连接... 客户端 address: " + channel.remoteAddress());WsChannelGroup.channelGroup.remove(channel);WsChannelGroup.userChannelGroup.remove(channel.id().toString(), channel);}@Overridepublic void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {if (cause instanceof JSONException) {ctx.channel().writeAndFlush(new TextWebSocketFrame("服务端仅支持JSON格式体消息"));return;}Channel channel = ctx.channel();log.info(channel.remoteAddress()+" 连接异常,断开连接...");cause.printStackTrace();ctx.channel().writeAndFlush(new TextWebSocketFrame("服务端500 关闭连接"));ctx.channel().closeFuture();WsChannelGroup.channelGroup.remove(channel);WsChannelGroup.userChannelGroup.remove(channel.id().toString(), channel);}
}
4. 全局用户Session管理
import io.netty.channel.Channel;
import io.netty.channel.group.ChannelGroup;
import io.netty.channel.group.DefaultChannelGroup;
import io.netty.util.concurrent.GlobalEventExecutor;import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;public class WsChannelGroup {public static ChannelGroup channelGroup = new DefaultChannelGroup(GlobalEventExecutor.INSTANCE);public static Map<String, Channel> userChannelGroup = new ConcurrentHashMap<>();
}
5. 客户端与服务端消息实体
@Data
public class ClientMessage implements Serializable {/*** 消息类型： 1 单聊 2,群聊*/private int type;/*** 消息内容*/private String msgInfo;/*** 消息发送方 （目前只在单聊中体现，【群聊暂时没有分组处理】）*/private String to;}@Data
public class ServerMessage implements Serializable {/*** 消息发送方*/private String from;/*** 消息内容*/private String msgInfo;/*** 时间*/private String date;public ServerMessage(String from, String msgInfo) {this.from = from;this.msgInfo = msgInfo;this.date = LocalDateTime.now().toString();}
}
6. 消息构建工具类
import com.alibaba.fastjson.JSONObject;
import com.xzq.netty.websocket.message.ServerMessage;
import io.netty.handler.codec.http.websocketx.TextWebSocketFrame;public class MsgUtil {public static TextWebSocketFrame buildSingleMsg(String from, String msgInfo) {return new TextWebSocketFrame(JSONObject.toJSONString(new ServerMessage(from, msgInfo)));}public static TextWebSocketFrame buildGroupMsg(String from,String msgInfo) {return new TextWebSocketFrame(JSONObject.toJSONString(new ServerMessage(from, msgInfo)));}
}
7. 鉴权处理器
import cn.hutool.core.util.StrUtil;
import com.xzq.netty.websocket.entity.TestUser;
import com.xzq.netty.websocket.mapper.TestUserMapper;
import io.netty.channel.ChannelHandler;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import io.netty.handler.codec.http.DefaultFullHttpResponse;
import io.netty.handler.codec.http.FullHttpRequest;
import io.netty.handler.codec.http.HttpResponseStatus;
import io.netty.handler.codec.http.HttpVersion;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;@Component
@ChannelHandler.Sharable
public class AuthHandler extends ChannelInboundHandlerAdapter {@Autowiredprivate TestUserMapper userMapper;@Overridepublic void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {if (msg instanceof FullHttpRequest) {FullHttpRequest msg1 = (FullHttpRequest) msg;//根据请求头的 auth-token 进行鉴权操作String authToken = msg1.headers().get("auth-token");System.out.println(">>>>>>>>>>>>鉴权操作");if (StrUtil.isEmpty(authToken)) {refuseChannel(ctx);return;}//查询数据库是否存在该用户TestUser testUser = userMapper.selectById(authToken);if (testUser == null) {refuseChannel(ctx);}//鉴权成功，添加channel用户组WsChannelGroup.channelGroup.add(ctx.channel());WsChannelGroup.userChannelGroup.put(testUser.getName(), ctx.channel());}ctx.fireChannelRead(msg);}private void refuseChannel(ChannelHandlerContext ctx) {ctx.channel().writeAndFlush(new DefaultFullHttpResponse(HttpVersion.HTTP_1_1, HttpResponseStatus.UNAUTHORIZED));ctx.channel().close();}
}
三， 整合spring
mport com.xzq.netty.websocket.server.WsServer;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;@SpringBootApplication
@MapperScan("com.xzq.netty.websocket.mapper")
public class WsApplication implements CommandLineRunner {@Autowiredprivate WsServer wsServer;public static void main(String[] args) {SpringApplication.run(WsApplication.class, args);}@Overridepublic void run(String... args) throws Exception {wsServer.listener();//钩子函数,虚拟机正常关闭调用Runtime.getRuntime().addShutdownHook(new Thread(()->{wsServer.destroy();}));}
}
```# 四，测试

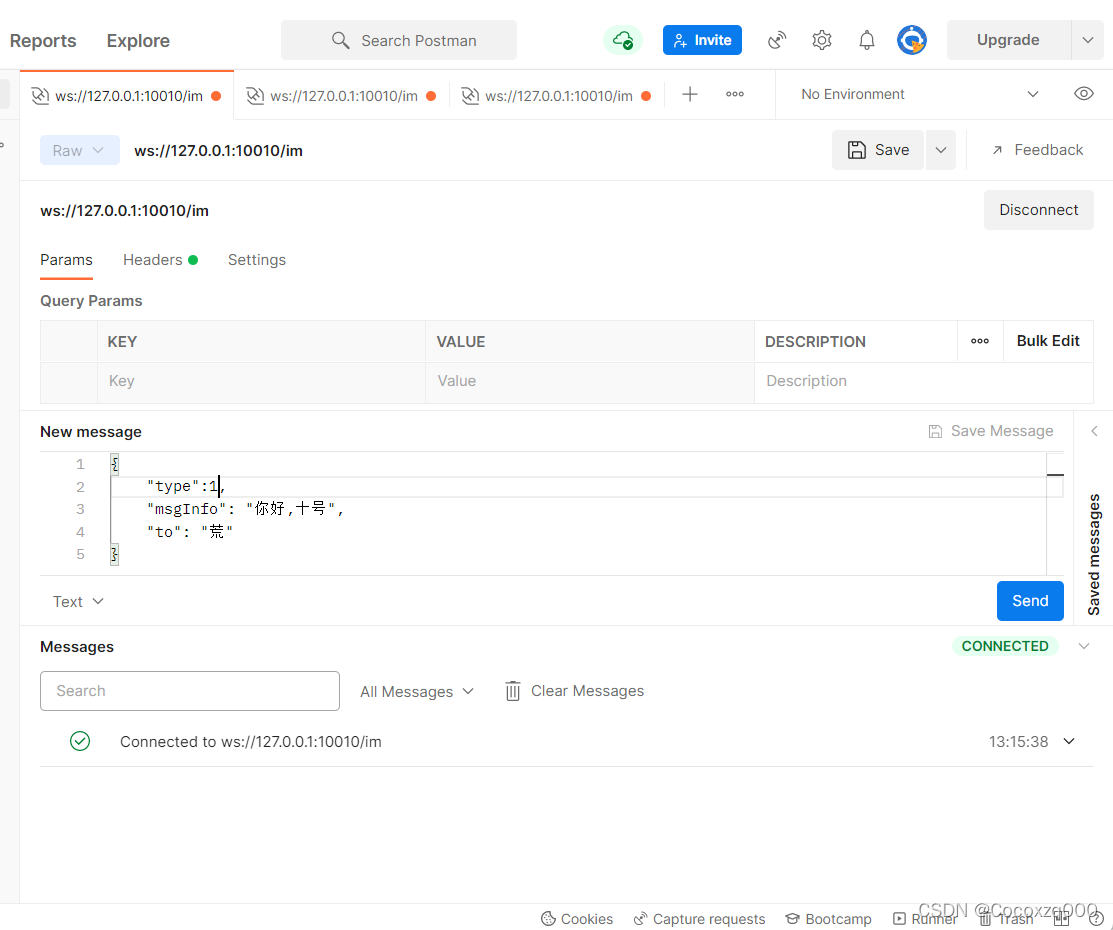

开启三个websocket客户端并都建立连接
发送消息
客户端2收到消息
